Introduction

Among the important tropical fruits, Mango “Mangiferaindica” is the main fruit of Asia which has developed its own importance throughout the world. It is one of the important fruit in Indian fruit basket accounts for 36 per cent to total fruit area, 20.3 per cent to total fruit production. Mango processing generates 40–60 per cent of waste, where peel and kernel contribute 12–15 and 15–20 per cent, respectively.¹ Disposal of this waste may cause environmental hazards which may further elevated when subjected to legal restrictions. In recent years thus new concepts of considering the use of these processing waste as by-products for further utilization and extraction of useful components from them have developed increasing interest.² Various studies have revealed that by-products generated from fruits and vegetable processing are good sources of potentially valuable bioactive compounds.  There are reported studies on utilization of mango stone in replacement of wheat flour or for extraction of edible oils. The kernel obtained after decortications of mango stone is good source of starch, fat and protein. Starch has got its important applicability in food and pharmaceutical industry. Due to its wide applicability various industries depend upon crops that are the primary source of food for the human, causing increase in food prices. Recently, isolation of starches from fruit seeds which are generated as by-products after utilization of pulp, were conducted and their composition was also characterized. In mango processing seeds which are generated as waste are generally exploited for its oil extraction. A study reported that, the residue left after oil extraction from kernel generally termed as “total waste” has adequate amount of starch.¹ Starch extracted from mango kernel is of good quality and there is difference in physicochemical properties of starch from different varieties of mango kernel suggests its application for both food and non-food purposes.³ Starchas an additive in food processing finds its use as thickeners and stabilizers in processed foods such as puddings, custards, soups, sauces, gravies, salad dressings, and to make noodles and pastas. Among these processed foods, application of starch in soups is very extensive,both in freshly prepared and dry soup mix. Soup is generally a liquida heterogeneous food category, predominantly  served hot, which is prepared using vegetables or meat with stock, juice or water with thickening agents.Some dry instant soups are prepared with thickening ingredients, such as pregelatinized starch. Various studies have reported on different methods of starch extraction from mango kernel, its physicochemical and structural properties. But there are limited studies available on applicability of extracted starch from mango kernel to food products. The present study was undertaken with the objective to extract starch from mango seed kernel, to investigate its level of acceptability in soup mix and to study its shelf-life.

Materials and Methods

Procurement of Mango Seed Sample

Seed waste of Totapuri variety fruit was procured from a local mango processing, Safal industry, Bengaluru, Karnataka, India

 Total Starch Content Determination

Total starch content of kernels was determined with standard protocol.⁴ Soluble sugars were extracted with ethanol (95%) and residual starch was then hydrolysed with perchloric acid into monosaccharides. The sugar was colorimetrically determined with phenol-sulphuric acid.

Extraction of Starch from Mango Seed Kernel

The recovered kernels were cut into small pieces and steeped in 0.16% aqueous solution of sodium hydrogen sulphite for 24 hrs at 50°C for preservation. The solution was decanted, and the samples were ground in a laboratory blender. The ground slurry was screened through muslin cloth where it was left and washed thoroughly with distilled water. After 1 hr, the supernatant was decanted from the filtrate and the settled starch layer was re-suspended in distilled water and centrifuged at 2800 rpm for 5min. The upper non-white layer of the residue was scraped off and the white layer was re-suspended in distilled water and centrifuged. This was repeated 4 more times and finally the starch was then collected and dried at 50ºC for 6 hours in an oven⁵ ( Fig.1).

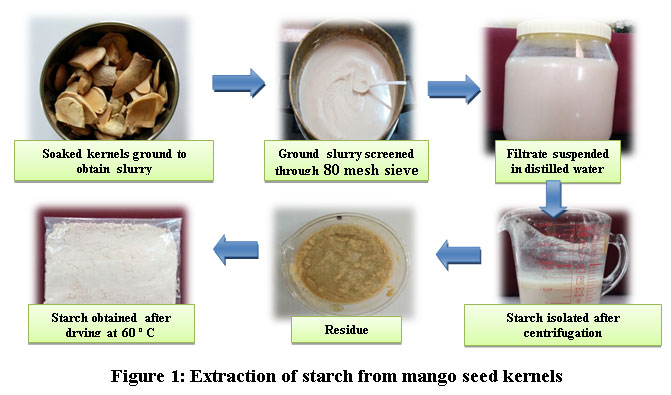

Figure 1: Extraction of starch from mango seed kernels  Click here to View figure

Nutrient Analysis

Extracted starch was analysed for its moisture, protein, fat, crude fiber and ash with standard protocols.⁶ Each nutrient was analysed in triplicates and mean values are represented in table 1. Carbohydrate was calculated by difference method and energy value was computed with energy yielding nutrients.

Functional Properties:Starch extract and corn flour were studied for functional properties viz., bulk density, water absorption capacity, oil absorption capacity, swelling power and solubility index in triplicates and mean values are represented in (table 2).

Bulk Density

The sample (50 g) was put into a 100 ml graduated cylinder and tapped 20-30 times. The bulk density was calculated as weight per unit volume of sample.⁷

Water and Oil Absorption Capacity

One gram sample was mixed with 10 ml of distilled water or with 15 ml oil for 30 minutes. The contents were allowed to stand at 30°C in a water bath for 30 minutes and then centrifuged at 3000 to 5000 rpm for 20 to 30 minutes. After centrifuging the volume of the supernatant was recorded and used for determination of water and oil absorption and the results were expressed as ml/g sample.⁸

Swelling Power and Solubility Index

About 0.4 g of sample in a centrifuge tube was treated with 40 cm³ of distilled water. The slurry was heated at 0, 50, 60, 70, 80, 85 and 90ºC in a water bath for 30 min. After cooling to room temperature, the solution was centrifuged at 3000 rpm for 15 min. The supernatant was carefully recovered, and the swollen starch sediment was weighed.⁵

Aliquot of the supernatant was then evaporated overnight (110ºC) and swelling power and solubility were calculated from equations (1) and (2).

Determination of Amylose and Amylopectin Contents

0.10g of the sample was weighed into a 100 cm³ volumetric flask and 1 cm³ of 99 per cent ethanol and 9 cm³ of 1 M sodium hydroxide solution were carefully added. The contents were mixed thoroughly and the sample solution was heated for 10 mins in boiling water to gelatinize the starch. After cooling the solution was made up to the mark with distilled water and shaken thoroughly. Five (5) cm³ of the starch solution in a 100 cm³ volumetric flask was treated with 1.0 cm³ of 1M acetic acid and 2.0 cm³ of iodine solution. The solution was diluted to the mark with distilled water and the absorbance was read using spectrophotometer at 620 nm. Absorbance of blank solution prepared accordingly was subtracted from that of the sample and amylose and amylopectin contents were calculated using equations (1) and (2) respectively:

Development of Soup Mix with the Incorporation of Starch Extract

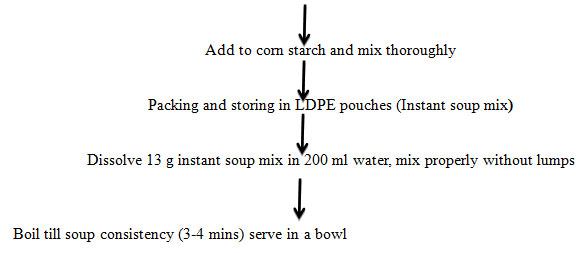

Instant Soup mix was developed and standardized with ingredients generally used in soup mix preparation.Corn starch was the main ingredient in soup mix, used as thickening agent which was replaced by extracted starch at 25, 50 and 75 per cent levels per serving size(Fig 2)

Mix all the ingredients (Salt, sugar, maida and milk powder)and dried spices

(onion, garlic, ginger and pepper)

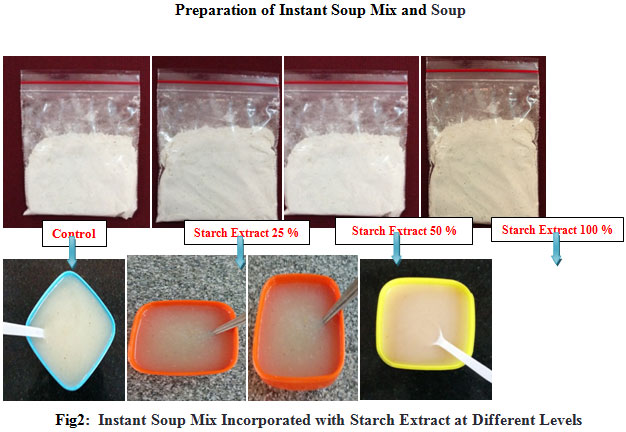

Figure 2:  Instant Soup Mix Incorporated with Starch Extract at Different Levels Click here to View figure

Sensory Evaluation of Soup Mixes

Soup was prepared by soup mixes containing different levels of starch extract and subjected for sensory evaluation(Subjective method). Acceptance preference test was employed to evaluate parameters like appearance, consistency, taste, colour, aroma and overall acceptability of soups on nine point hedonic scale⁹ by trained panel members (n=21) .

Shelf Life Study of the Products

After sensory evaluation the best accepted level of incorporation of starch extract into soup mix and control were packed in food grade 300 gauze LDPE (low density polyethylene) pouches to conduct storage study.Soup mix packed in LDPE pouches was stored at room temperature for 2 months. Soup mix was evaluated for sensory scores and microbial load during, initial, 30 and 60 days of storage period.

Microbial Study of the Food Products

The microbiological analysis of the developed soup mix samples was carried out as per the standard method for coliforms using the Eiosine Methalene Blue Agar (EMBA), for general bacteria nutrient agar and for fungi using Rose Bengal Agar (RBA). Ten gram of sample was diluted in 90 ml of buffer blanks and subsequent dilutions were prepared up to 10^-6 dilution. Three dilution factors were used in triplicates for plating of coliforms, general bacteria and fungi viz., 10^-2, 10^-3, 10^-4, 10^-5 and 10^-6.. The number of microbial counts was calculated using the following formula.¹⁰

Statistical Analysis

The data was tabulated keeping in view the objectives of the study. One way analysis of variance (F-test) was applied for sensory characteristics to test the significant difference between samples in the study. Student t- test was done to compare functional properties of samples. Two way analysis of variance (F- test) was used for sensory scores of the products on storage. Significant difference was defined at p ≤ 0.05 (5%).¹⁰

Results and Discussion

Starch Extraction

Starch is the predominant food reserve substance in plants. It is greatly in abundance and is readily converted into useful products. Thus, it finds application in many industries. In the present study starch content in mango kernel was found to be 68.50 per cent. Recovery of starch was 50.5 g per 100 g of kernels (73.7 %). Similar findings observed and reported starch content ranged between 52.80 to 65.37 per cent, indicating varietal difference.⁵ Some findings observed to be lower, 55 and 46.69 per cent for starch and its recovery respectively.¹² In present study solid solvent ratio of 1:10 was used. Reported study which examined influence of solid to solvent ratio revealed, yield of starch increases as the solid to solvent ratio increases and maximum yield was observed for 1:14 solid to solvent ratio.³ Isolation of starch will not be effective at low solid to solvent ratio. Whereas when higher solid to solvent ratio is used kernels are steeped properly and isolation of starch will be effective and recovery observed to be high.Recovery of starch is dependent on the ratio of solid to solvent used in the extraction method.

Nutrient Composition of Starch Extract

Nutrient composition of extracted mango kernel starch is presented in Table 1. Results showed that moisture, protein, fat, crude fiber, carbohydrate, ash and energy content of starch extract was 10.41 per cent, 4.86, 3.64, 0.32, 80.72, 0.37 g and 374 k. cal. per 100 g respectively.Nutrient composition of starch extract indicates presence of fat and protein. There are reported lower values for all the nutrients in extracted starch of mango kernels.⁵ In the present study since no alkali treatment was given during starch extraction, protein was not completely separated.

Table 1: Nutrient Composition of Starch Extract per 100 g (n= 3 Replications)

Physicochemical Properties of Corn Starch and Mango Kernel Starch Extract

 In present study physicochemical properties of kernel starch extract was compared with the corn starch as it was used in control soup mix sample as reference and which is one of the common ingredients in commercial soup mixes as thickening agent. Results of physicochemical properties are presented in Table 2. Statistical analysis with student t-test shows that except for bulk density and gelatinization temperature, all other parameters had significant difference at 5 per cent level between the corn starch and starch extract from kernel.

Starch extract had lower water and oil absorption capacity compared to corn starch. It was found to be 2.10 and 1.20 ml per g for water and oil absorption capacity respectively. Corn starch had more water absorption (2.8 ml/g) and oil absorption (1.7 ml/g) capacity compared to starch extract from kernels. Studies reported lower water biding capacities (WBC) of starches from mango kernel cultivars (89.5 to 97.7%) than starches from potato cultivars. The main structural components of starch viz., amylose and amylopectin, their loose association may be responsible for reduced water and oil absorption capacity compared potato starches.¹ A study compared impact of different drying method on water and oil absorption index for kernel powder, reported  significant difference between drying methods employed, which ranged from 1.83 to 2.24 (g/g) and 1.69 to 2.30 g/g for water and oil absorption index respectively. Cabinet dried sample had lowest indices compared to other methods (Freeze, vacuum and IR).¹² These range of findings observed to be on par with results of present study. Use of cabinet drier in present study may be responsible for low water and oil absorption capacities of starch extracts compared to corn starch.  Since starch is the major component of mango seed kernel these findings can be correlated.  Morphology of starch granules, structural differences, size of starch molecules and association between starch granules showed greater impact on water and oil absorption capacities.¹³ There are reported studies on structural difference between corn starch and mango kernel starch, attributed to difference in functional properties of study samples.

Solubility index of starch extract (14.9 %) was high compared to corn starch (11.3 %) whereas swelling power of corn starch(12.3 g/g) was more than starch extracts (8.2 g/g).Swelling power of starches of different mango cultivars ranged from 18.0 to 19.7 g/g and solubility index ranged from 0.141 to 0.149 g/g.¹ These findings are in supportive to the present results for solubility index.Higher values are reported for swelling power. Magnitude of interaction between two predominant chains of starch granules, amylose and amylopectin has influence on swelling power and solubility index of starch. Extent to which these two chains interact depends on several characteristics such as, amylose/amyopectin ratio, molecular weight distribution and length of branching. Varietal difference in mango attribute to difference in these characteristics leading to changes in functional properties.¹⁴

Starch, amylose and amylopectin content for corn starch were 84.0, 17.2 and 82.8 respectively and for mango kernel starch it was 80.0, 14.6, and 85.4 per cent.All these parameters significantly differed at 5 per cent level between test samples. Amylose content of  kernel starch extract was lower compared to corn starch. Amylose content of starches of different mango kernel cultivars ranged from 9.1 to 16.3 per cent.¹ These findings support the results of present study. Large-size granules in case of corn starch responsible for high amylose content. Whereas small size granules of mango kernel starch as reported by the studies may attribute to its low amylose. Findings of starch, amylose and amylopectin of starch extract are in line with the results reported for different varieties of mango kernel flour.⁵

Sensory Evaluation of Soup Mix

Statistically significant difference at 5 per cent level existed for all the sensory parameters between control and starch extract incorporated soup samples for all the sensory attributes (Table 3). Replacement of corn starch with starch extract up to 50 per cent.

Table 2: Physico-chemical Properties of Corn Flour (CF) and Starch Extract used in Development of Instant Soup Mix (n=3)

NS – Non Significant  * Significant at 5% level

Table 3: Mean sensory scores of instant soup mix incorporated with starch extract (n=21)

NS – Non Significant * Significant at 5% level (Means in the same columns followed by different letters are significant)

serving had sensory scores on par with control, showing statistically non significant difference at 5 per cent level, whereas further incorporation level significantly lowered the scores.Incorporation of mango kernel starch was acceptable up to 50 per cent with sensory scores on par with the control. But when only starch extract was used (100% incorporation) sensory scores decreased significantly, which may be attributed to the functional properties of starch extract. As the level of incorporation of starch extract increased major changes were observed in consistency and appearance of soup. Overall acceptability scores were high for control (8.56) soup, followed by 50 per cent (8.42) and 25 per cent (8.41) starch extract incorporated soup. Among variations, 50 per cent starch extract incorporation was best accepted and was kept for shelf life study. Replacement of 50 per cent of watermelon seed flour in egusi (melon seeds) soup which is popular in Nigeria, had non-significant difference between sensory scores when compared to original egusi soup prepared with 100 per cent melon seed flour.¹⁵ These findings support the incorporation of seed flours in soups is acceptable at 50 per cent level of incorporation.

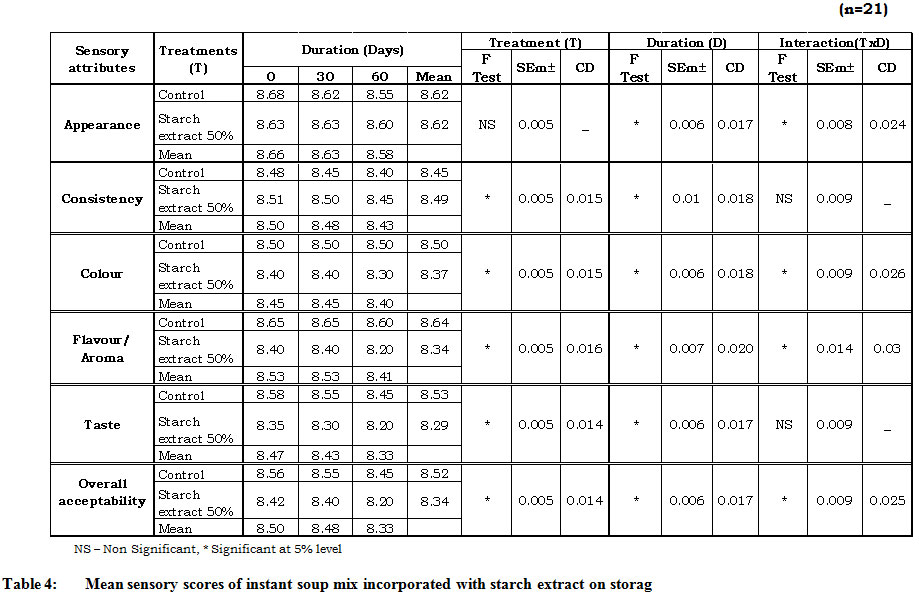

Table 4: Mean sensory scores of instant soup mix incorporated with starch extract on storage Click here to View figure

Effect of Storage on Sensory Scores of Instant Soup Mix

Soup mix of control and 50 per cent starch extract incorporated samples were studied for a period of 2 months (60 days) for sensory scores. Soup mixes were sealed in LDPE (low density polyethylene, 300 gauze) bags and kept at ambient temperature and evaluated periodically (initial, 30^th and 60^th days) for sensory attributes. Fresh soup was prepared and evaluated by panel members and the results are presented in Table 4.

Results showed that, except for appearance, all the mean sensory scores were significantly differed between control and starch extract (treatment) incorporated soup. Sensory scores were significantly reduced with duration (60 days), but were observed to be within acceptable range, according to the sensory evaluation score card. Interaction of treatment (incorporation of starch extract) and storage period was also observed to be significant for all the sensory attributes, except for consistency scores.

Sensory scores significantly decreased along two months (60 days) of storage period for instant soup mix. Incorporation of starch extract has also lowered the sensory scores compared to control over the storage period. Soup mix was a dry mix of mainly corn flour and starch extract with spices, without any heat treatment, which may attributed to decrease in sensory scores of soup mixes. Nutrient composition of starch extract reveals presence of fat, oxidation of which may attribute to lower the sensory scores when compared to control soup mix. At  the end of storage period, overall acceptability scores of control and 50 per cent starch extract incorporated soup was 8.45 and 8.20 respectively (Table 4). Which indicated the acceptability of both the products at 60^th day (2 months) of storage period.  Soup prepared by dehydrated vegetable mixtures had the shelf life of 3 months period with overall acceptability score of 6.23 at the end of storage period.¹⁶ These outcomes are in line with present study.

Table 5: Microbial load of instant soup mix during shelf life study (per g) (n=3)

Microbial load of developed food products during storage period

Control instant soup mix had the TBC (Total Bacterial Count) of 1X10³, 1.3X10³ and 2X10³ CFU per g at initial, 30 and 60 days of storage period respectively. Starch extract incorporated soup mixes had TBC at initial (9.6X10² CFU), during 30 (9.8X10²  CFU) and 60 days (1.4X10³ CFU) of storage period. Mold counts were nil in soup mixes. Total bacterial counts were observed from initial to 60 days (2 months) of storage period as no heat treatment involved in its dry mix preparation. But it was observed to be within safe limits. Control had more TBC compared to starch extract soup mix at all storage periods. Lower microbial load on starch extract soup mix may be attributed to its bound polyphenol content (8 mg GAE/ g) which has antimicrobial property (table not presented).  A study reported aerobic plate count of the fresh vegetable soup mix as 2.1×103 cfu/g and for prawn added soup mix 2.9×103 cfu/g after 2 months of storage period.¹⁷ Product is microbiologically safe if the total microbial count of dehydrated soups is less than 1×10⁴cfu/g.¹⁸ These findings support the results for microbial load on instant soup mixes over storage period and their shelf life.

Conclusion

During processing of ripe mango, its seeds are generated as waste. This waste is a problem for canning factories as its disposal may appreciably increase environmental pollution. Mango seed kernel which is generated as waste can be effectively treated as by product to extract starch. When replaced for corn starch in soup mix, this starch extract from mango seed kernel found to be acceptable till 50 per cent incorporation level, with shelf life of up to two months. Further different methods to extract starch from mango kernel to increase its recovery can be explored and molecular study of the starch granule also finds scope to understand various properties of mango kernel starch helpful to widen its application in food processing and to study  its health implications.

Acknowledgments

Promotion of University Research and scientific excellence (Department of Biotechnology -(PURSE) fellowship), Department of Food Science and Nutrition, University of Agricultural Sciences, GKVK, Bangalore.

References

1. Kaur M., Singh N., Sandhu K. S., Guraya H. S. Physicochemical,morphological, thermal and rheological properties of starches separated from kernels of some Indian mango cultivars (Mangiferaindica). Food Chemistry. 2004;85:131–140.
   CrossRef
2. Jasna S. D. By-products of fruits processing as a source of phytochemicals. Chemical Industry and Chemical Engineering Quarterly. 2009;15(4):191-202.
   CrossRef
3. Sonthalia M., Sikdar D. C. Production of starch from mango (MangiferaIndica L.) seed kernel and its characterization. International Journal of Technical Research and Applications., 2015;3(3): 346-349.
4. Sadasivam S., Manickam A. Biochemical methods, second edition. Coimbatore, New age International Publishers. 1991
5. Hassan L. G., Muhammad A. B., Aliyu R. U., Idris Z. M., Izuagie T., Umar K. J., Sani N. A. Extraction and Characterisation of Starches from Four Varieties of Mangiferaindica Journal of Applied Chemistry. 2013;3(6):16-23.
6. AOAC. Official methods of analysis, 18th edition, Washington DC., Association of Official Analytical Chemists. 1995.
7. Baljeet S. Y., Ritika B. Y., Roshan L. Y. Studies on functional properties and incorporation of buckwheat flour for biscuit making. International Food Research Journal . 2010;17:1067-1076.
8. Rosario R. D., Flores D. M. Functional properties of flour types on mung bean flours. Sci. Food Agri. 1981;32:172-180.
   CrossRef
9. Avantina S. Textbook of Food science and technology, New Delhi, Narosa publishing house private Limited. 2006;324-326.
10. Tate R. L. Soil Microbiology, New York, John Wiley and Sons, Inc. 1995;228-232.
11. Fisher R. A., Yates F., Statistical tables for biological, agricultural and medical research. Edinburg Oliver and Boyd. 1963.
12. Singh S., Verma A., Bajaj A., Singh K. N. Eco-friendly disposal of mango kernel by the recovery of starch. Journal of Environmental Research and Development. 2007;2(3):370-377.
13. S Siddiq M., Greiby I., Dolan K. D. Total phenolics, antioxidant activity and functional properties of ‘Tommy Atkins’ mango peel and kernel as affected by drying methods. Food Chemistry. 2013;141:2649-2655.
    CrossRef
14. Hoover R. Composition, molecular structure and physicochemical properties of tuber and root starches :areview. Carbohydrate Polymer. 2001;45:253-267.
    CrossRef
15. Akusu., Kabari. Comparitive studies on the physicochemical and sensory properties of watermelon (Citrulluslanatus) and Melon (Citrullusvalgaris) seed flours used in ‘EGUSI’ soup preparation. Journal of Food Research. 2015;4(5):1-8.
    CrossRef
16. El-Malky W. A., Hareedy L. A. M., El-Hadidy E. M. Production of low caloric dehydrated vegetable mixtures. African Journal of Food science. 2010;9(5):326-330.
17. Vasantharuba S., Mahilrajan S., Srivijeindran S. Formulation of instant soup mix powder using unboiledpalmyrah (BorassusFlabellifer) tuber flour. Proceedings of Jaffna University international Research Conference. 198-202.
18. Jey J. M. Incidence and types of microorganisms in foods. Springer Netherlands, Modern Food Microbiology. 1998;63-93.
